The Fix My Pen tool solves annoying Tablet PC when using a Graphics tablet with Windows 7.
The FixMyPen tool should no longer be needed thanks to updates to how drivers work with Windows. For years now the solution is to disable Windows Ink.
Dynamic Feedback “Rings”
Pen Flicks
Press-and-hold delay
Tablet PC input panel
Windows 7 Enterprise
Ultimate
Home Premium.
Download Fix My Pen from here: https://github.com/saveenr/Fix_My_Pen/releases
Right-click on the ViziblrFixMyPen.exe file and select Run as administrator.

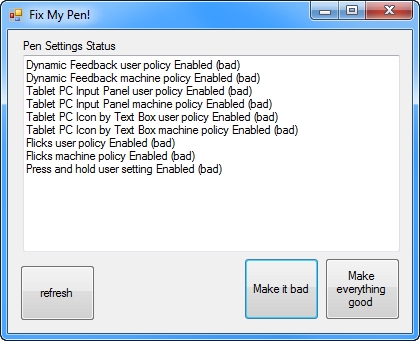

When Fix My Pen starts, you will see all the settings are marked “bad”.

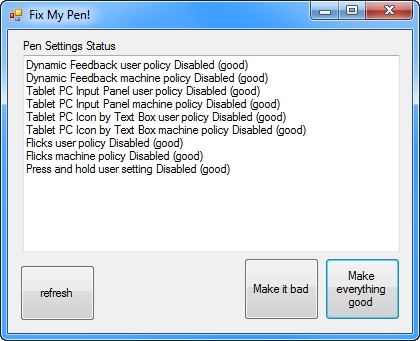

Click Make everything good. Then the program will look like this.
Close the program.
Log-out and log back in to Windows .
Now you can use your Wacom pen without all the Tablet PC nonsense.
The Flicks icon will no longer be visible in the Notification Area

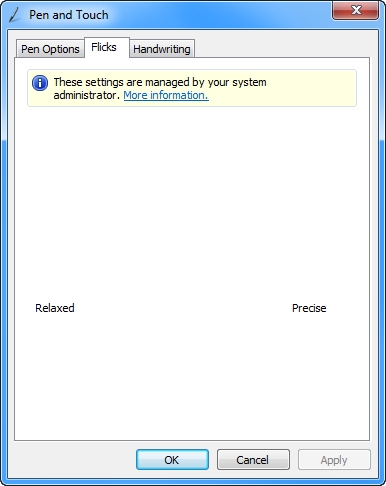

The Flicks tab in the Pen and Touch control panel will look like this
The Tablet PC Input panel will no longer be visible on the Desktop
The Tablet PC icon will no longer show up next to text input boxes
The Tablet PC Input panel options in Control Panel will have several items disabled and grayed-out:

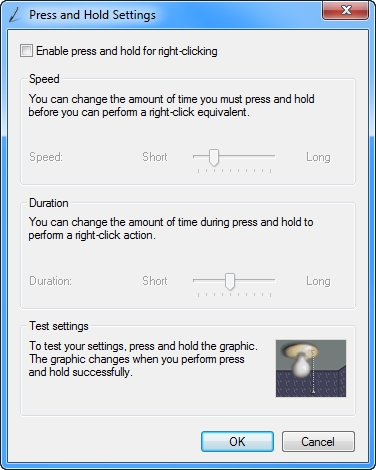

The Press and Hold value in the control panel will be disabled.
Dynamic Feedback rings will be disabled and you will no longer see them when clicking.
It’s all up here: https://github.com/saveenr/Fix_My_Pen/
"Tablet PC" pen features are the original name for what today is called "Windows Ink"
These instruction were written in 2011 for Windows 7. Most people who used drawing tablets found that the Tablet PC features interfered with their creative applications.
And so, they needed instructions in how to turn it off.
Since Windows 7 the situation has evolved.
Modern tablet drivers use Windows Ink usually have a checkbox to disable Windows Ink. So these instructions should no longer be necessary unless you are using a very old driver.
When Windows 7 detects that your PC is connected to a Wacom tablet attached, it automatically activates several Tablet PC features. Learn more about these features here LINK
These features would be helpful if you were using a Tablet PC, but can be rather annoying or really interfere with your use of creative applications such as Photoshop.
The following instructions show you how to manually disable these features.
The Wacom drivers are available here: https://www.wacom.com/en-us/support/product-support/drivers.

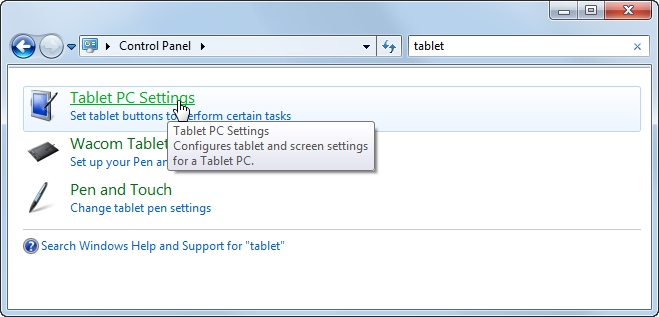

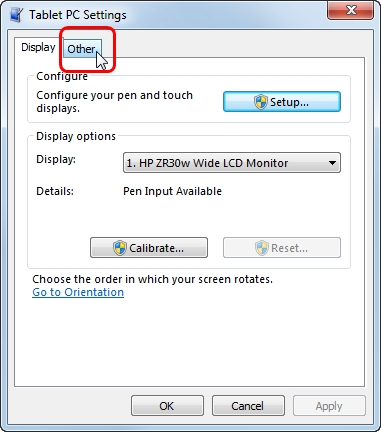

Go to Control Panel > Tablet PC Settings

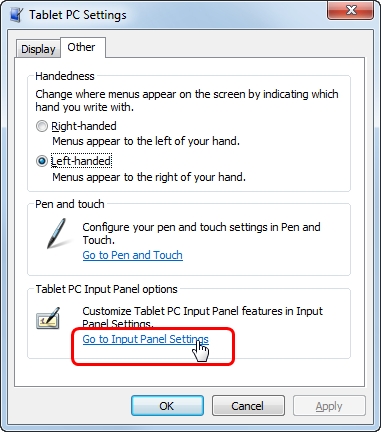

Click on the Other tab
On the Other tab, under Tablet PC Input Panel options, click on Go to Input Panel Settings

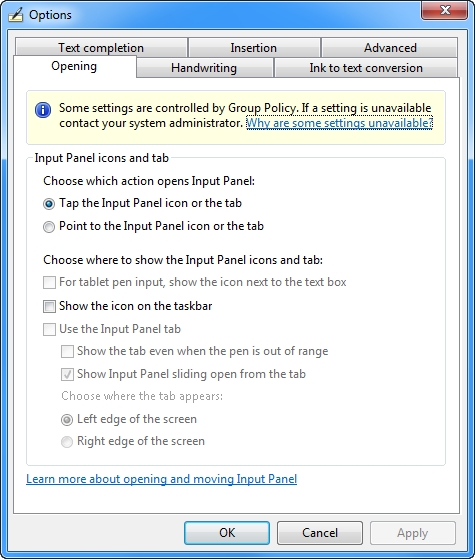

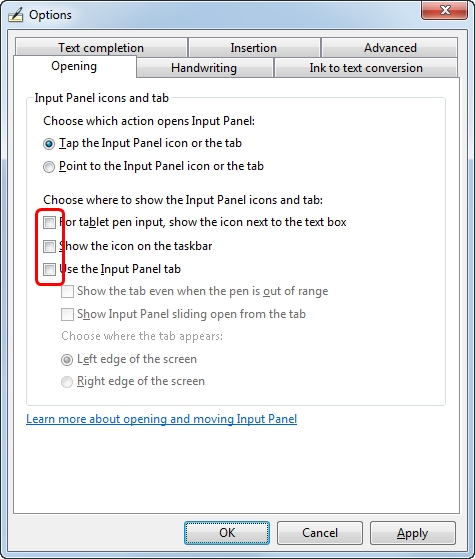

Disable all the checkboxes under Choose where to show the Input Panel icons and tab and then click OK.

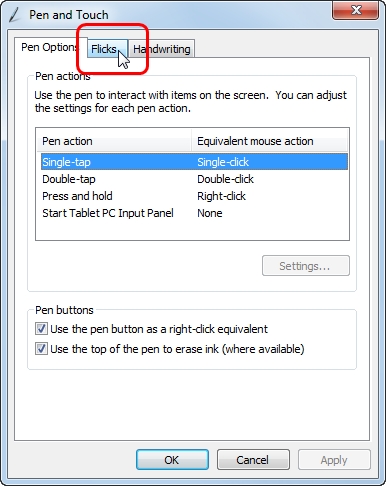

Open the Pen and Touch control panel

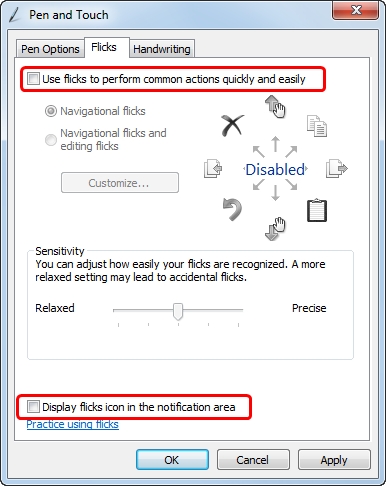

Click on the Flicks tab
Uncheck Use flicks to perform common actions quickly and easily
Uncheck Display flicks icon in the notification area
press OK
To disable this…

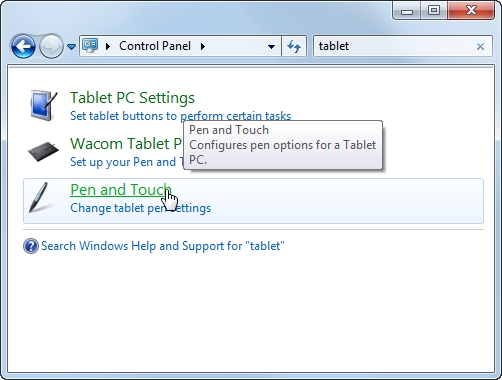

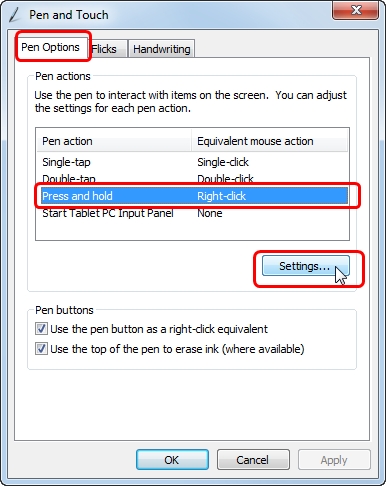

In Control Panel go to Pen and Touch

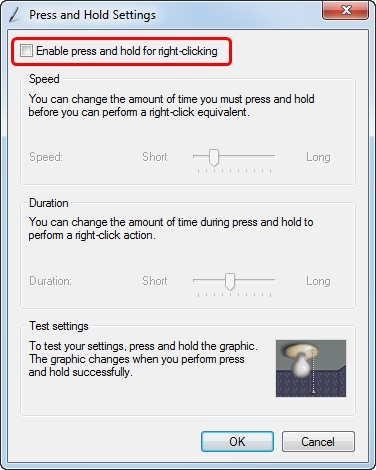

Under Pen Options, select Press and Hold and click Settings
Uncheck Enable press and hold for right-clicking
Press OK
There’s no UI to disable Dynamic Feedback in Windows 7.
Instead, you have to modify the Windows Registry.
Open notepad and create a new text file with the text below
Save the file as disable-pen-feedback.reg
Make sure it has the extension .reg and not reg.txt

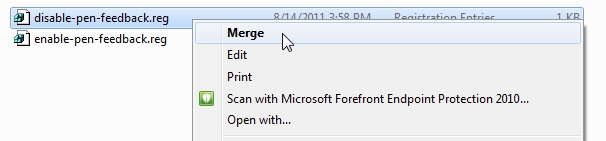

Right click on disable-pen-feedback.reg and select Merge

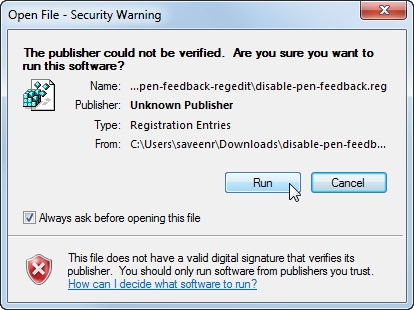

Windows will warn you, but just click Run

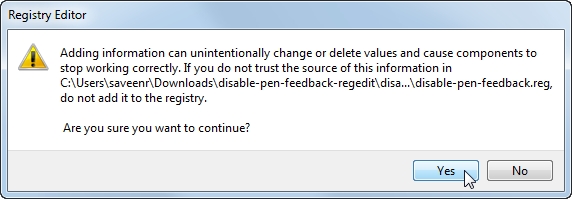

And Windows will warn you again, just press Yes.

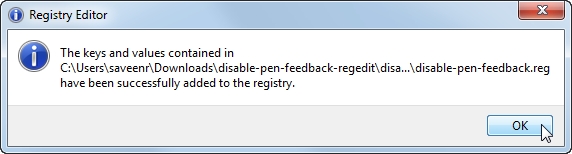

And finally it will tell you that it has merged the settings
Sometimes all these changes will take place immediately. Sometimes it takes a little longer.
There are three options the trigger the change if it’s taking longer than expected:
Option 1: Log-off and then log back on.
Option 2: Restart your machine.
Option 3: (Expert) restart the “Tablet PC Input Service”

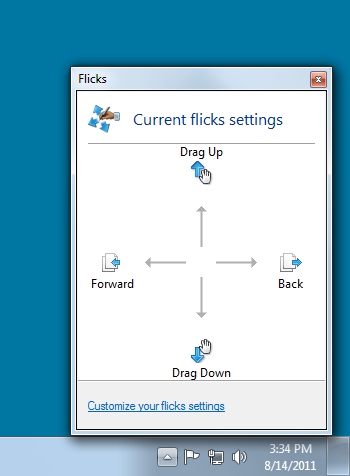

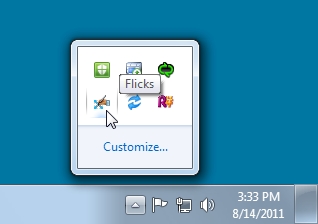

If you click on the Flicks icon you’ll see the Flicks settings UI
What Flicks does: When you gesture with the pen, Windows will think you are giving it a command. For example, drawing a short down stroke will cause the following flick Drag Down notification.
When you press down with the pen, you’ll see a “glowing ring” and when you lift the pen a property menu will appear.
What is happening is that Windows is treating you pressing and holding as if you want to do a normal “right click” with the mouse.
Dynamic feedback (aka Pen Feedback) is all the little rings that appear when you press down with the pen.
